Designing a Complete Respiratory Care Space: The Equandlab Global Synergy
Creating a high-performance respiratory care space is a decisive step toward preserving and optimizing respiratory function in your horses. At Equandlab, we design this layout as a true global therapeutic microclimate.
To guarantee maximum efficacy and absolute comfort without causing stress to the animal, our approach relies on the synergy of three complementary technologies:
-
The Mask-Free Ultrasonic Inhaler (OxygenConcept): For a fine and uniform diffusion of Dead-Sea Brine throughout the entire volume of the room, avoiding the discomfort of a mask or harness on the horse's nose.
-
The Oxygen Concentrator: To elevate ambient O2 partial pressure and support cellular oxygenation.
-
The O2 Ionization Module: To purify the air from microparticles and optimize pulmonary absorption.
The following technical recommendations will guide you step-by-step through the optimal installation of this care space (sealing, volume, ventilation) to make the most of Equandlab's respiratory product range.
Installation Guide and Recommendations for Your Inhalation Space
Important Note on Dimensions:
This diagram is based on a reference configuration using a standard 3 x 3 m box stall. Since every stable has its own architectural features (larger box stalls, grooming ties, ceiling heights, etc.), this layout must be custom-fitted to your facilities. Our teams remain at your disposal to advise you on the exact sizing of your space.
Subject: Recommendations for Fitting Out a Treatment Stall Using Flexible Curtains
Equipment: Ultrasonic Nebulizer (Dead Sea Salt Solution) + O2 Concentrator & OxygenConcept Ionizer Module
Prior Sanitization: Equine Biofresh
1. Key Layout Principles

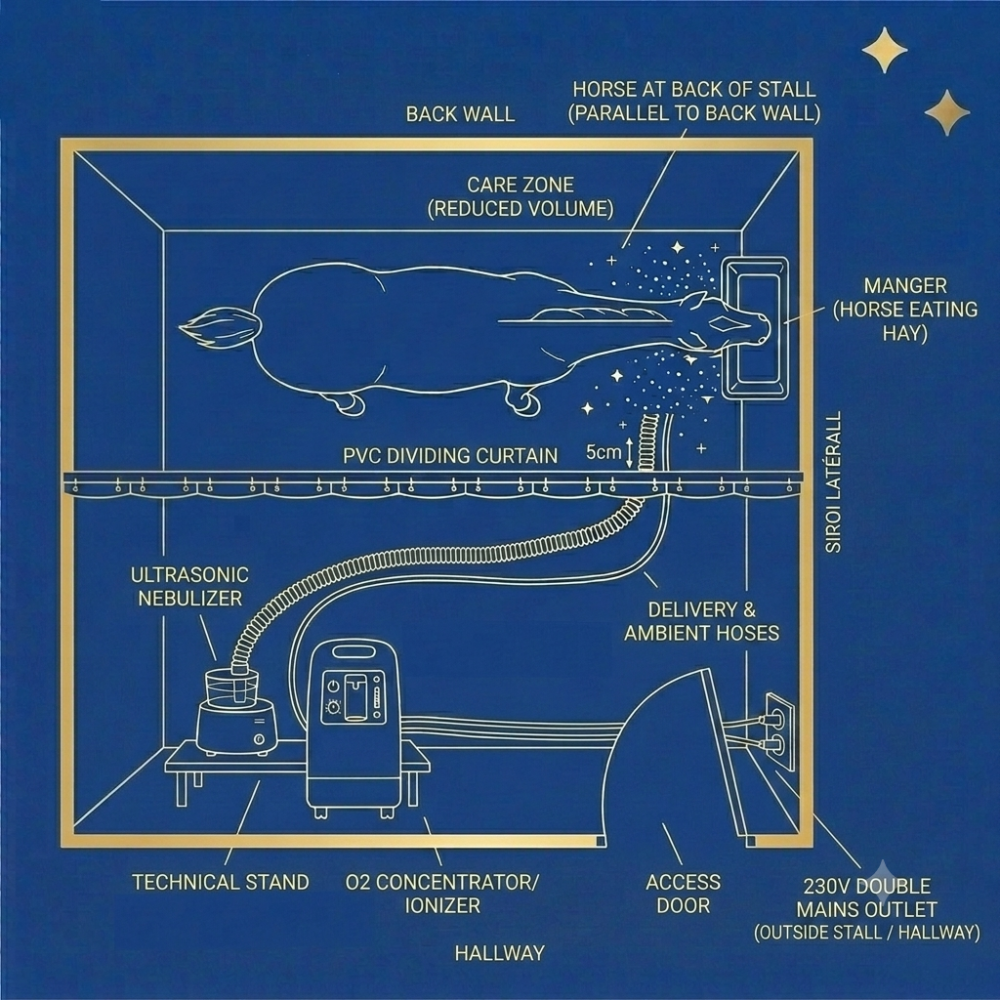

This diagram illustrates the recommended configuration for creating a high-performance inhalation space within your facilities:
-

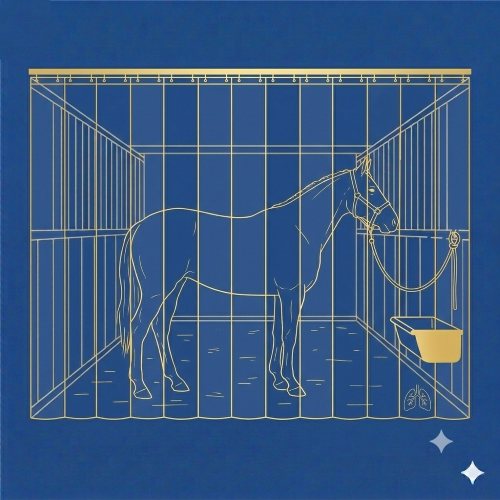

Dedicated Treatment Zone: Flexible PVC curtain partitioning creates a restricted space at the back of the stall. This rapidly traps the therapeutic mist without completely closing off the room.
-
Total Electrical Safety (Outside the Stall): Devices (nebulizer and concentrator) as well as 230 V power sockets are placed exclusively in the hallway, well out of the horse's reach and protected from moisture.
-
Simplified Tubing Setup: Hoses pass through the PVC curtain, protruding just a few centimeters to diffuse the mist directly into the ambient air without interfering with the horse's head or nose.
2. Volume Analysis: Why Is a 3 x 1.5 m Stall Ideal?
While an ultra-compact, custom-built rigid cabin (typically under 10 m³) offers instant saturation, a stall sectioned off by a PVC curtain (3 x 1.5 m, or approximately 10 to 13 m³) delivers the perfect balance between clinical efficacy and animal welfare:
-
High Inhalation Output and Power:
The OxygenConcept equipment (high-frequency ultrasonics combined with 90–95% oxygen concentration) delivers sufficient output to rapidly saturate a 10 to 13 m³ stall space, easily offsetting the slightly larger volume compared to a fully closed booth.
-
Stress Reduction & Deep Breathing:
In tight, fully enclosed cabins, some horses experience confinement anxiety that leads to rapid, shallow breathing. In this open-feel stall setup—where the horse retains full visibility and is free to eat hay from the feeder—the animal remains calm. Its respiratory rate slows down, enabling long, deep inhalations that carry the mist and oxygen deep into the bronchial tree.
-
Prior Sanitization with Equine Biofresh:
Applying Equine Biofresh beforehand sanitizes the stall space by neutralizing ammonia, airborne dust, and pathogens. This prevents any loss of inhalation efficacy caused by ambient pollutants.
-
Flexibility & Modularity:
This installation eliminates the need to build an expensive rigid cabin and preserves the stall's everyday use simply by tying back the PVC strips.
Appendix: Specialized Suppliers for PVC Strip Curtains
For purchasing and fitting flexible PVC strip curtains (featuring smooth, rounded safety edges for animals, stainless steel rails, and mounting brackets):
Equestrian Equipment & Livestock Specialists
-
Abrivert — Range of flexible PVC strip curtains for box stalls and equestrian shelters.
Abrivert Catalog
-
Horse's Line — Clear PVC strips and stainless steel mounting kits for horse stalls.
Horse's Line Catalog
-
La Gée Cheval — Specialized equipment and fittings for stables.
La Gée Cheval Catalog
Custom-Cutting Specialists
-
Ridoflex / Ridolan — French manufacturer of custom-cut PVC strip curtains (ready-to-install kits).
Ridoflex Configurator
-
Laniflex — Custom design and professional-grade flexible PVC strips.
Laniflex Website
-
Kimply — Industrial and agricultural flexible partitioning solutions.
Kimply Website
